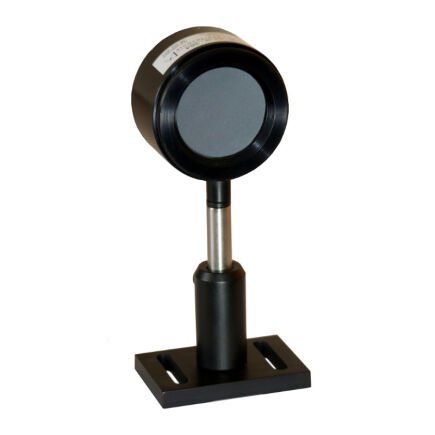

These pyroelectric detectors PEM45KUSB respectively PEM45USB are a combination of a robust pyroelectric sensor with a read out electronic with USB-port. It can be connected to an oscilloscope using the BNC-connector or to a PC using the USB port. In USB mode the BNC connector is an external trigger input.
The output signal is transferred to a connected PC via USB. The device is powered from the USB-port. To display the measured values an user friendly software is available.

Data

Aperture

45 mm

Energy Range

0.1 mJ .. 1.5 J

max. Frequency

30 Hz

max Energy Density

80 mJ/cm²

max. Average Power

10 W

Sensitivity (Oscilloscope)

10 .. 15 V/J

Accuracy

±3 %

Connector

USB, BNC, E-Connector

Dimensions (Diameter x Length)

68 mm x  53 mm

Data

Aperture

45 mm

Energy Range

1 mJ .. 15 J

max. Frequency

30 Hz

max. Energy Density

Eximerlaser: 1 J/cm²
​Nd:YAG THG: 450 mJ/cm²
Nd:YAG SHG: 560 mJ/cm²
Nd:YAG 1064: 970 mJ/cm²
CO2-TEA: 5 J/cm²


max. Average Power

10 W

Sensitivity (Oscilloscope)

1.5 .. 3.5 V/J

Accuracy

±3 %

Connector

USB, BNC, E-Connector

Dimensions (Diameter x Length)

68 mm x  53 mm
