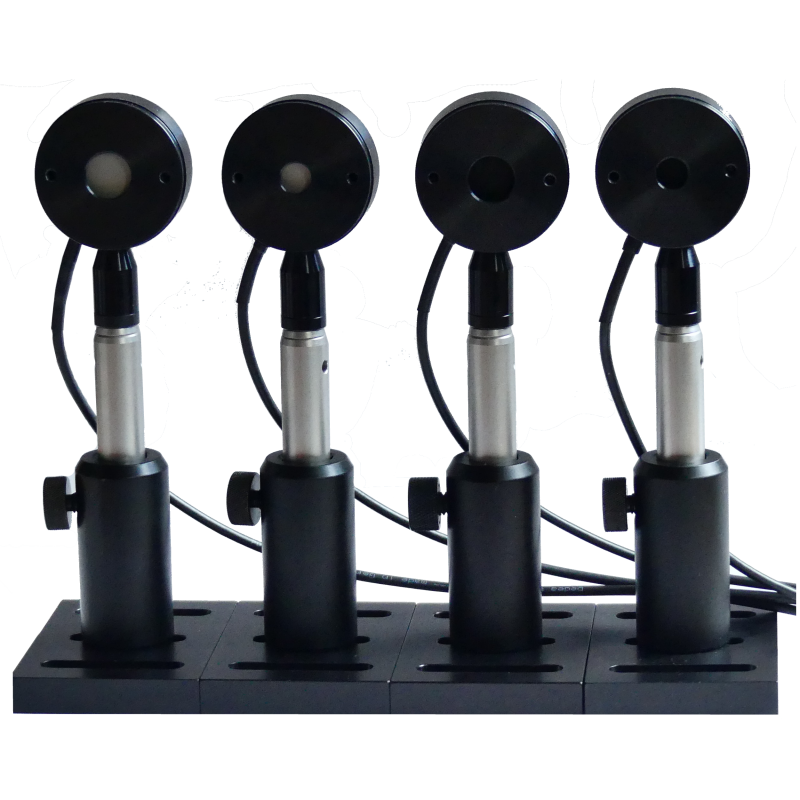

These sensors have a thin metallic or black absorption layer leading to a faster heat transfer to the sensor element. Repetition rates up to more than 2000 pps. are possible. The spectral behaviour is flat in the VIS and NIR but for longer wavelengths the absorption properties have to be taken into account. Main application is the use at one wavelength. The metallic coating of the two UV types is more stable in the ultraviolet region than the organic black coating.

Data

Aperture

12 mm

Energy Range

30µJ .. 100mJ

max. Frequency

750 Hz

max. Average Power

2 W

max. Energy Density

80 mJ/cm²

max. Peak Power Density

8 MW/cm²

Sensitivity (Oscilloscope)

20 .. 30 V/J

Accuracy

±3%

Connector

BNC, E-Connector

Dimensions (Diameter x Length)

40 mm x 40 mm

Data

Aperture

12 mm

Energy Range

30µJ .. 60mJ

max. Frequency

2,5 kHz

max. Average Power

2 W

max. Energy Density

50 mJ/cm²

max. Peak Power Density

5 MW/cm²

Sensitivity (Oscilloscope)

35 .. 45 V/J

Accuracy

±3%

Connector

BNC, E-Connector

Dimensions (Diameter x Length)

40 mm x 40 mm

Data

Aperture

24 mm

Energy Range

30µJ .. 350mJ

max. Frequency

750 Hz

max. Average Power

5 W

max. Energy Density

80 mJ/cm²

max. Peak Power Density

8 MW/cm²

Sensitivity (Oscilloscope)

20 .. 30 V/J

Accuracy

±3%

Connector

BNC, E-Connector

Dimensions (Diameter x Length)

55 mm x 39 mm

Data

Aperture

24 mm

Energy Range

30µJ .. 250mJ

max. Frequency

1,2 kHz

max. Average Power

5 W

max. Energy Density

50 mJ/cm²

max. Peak Power Density

5 MW/cm²

Sensitivity (Oscilloscope)

35 .. 45 V/J

Accuracy

±3%

Connector

BNC, E-Connector

Dimensions (Diameter x Length)

55 mm x 39 mm
