The overhanging feature of these measuring head series is the high sensitivity. It allowes you to make a high precision measuring over a huge dynamic range (up to 5 dimensions) with high linearity and, in contrary to a Photodiode, without a saturation effect at a high power level. The broadband absorbing layer allowes an usage between 190 nm and 25 µm without appreciable wavelength dependence.

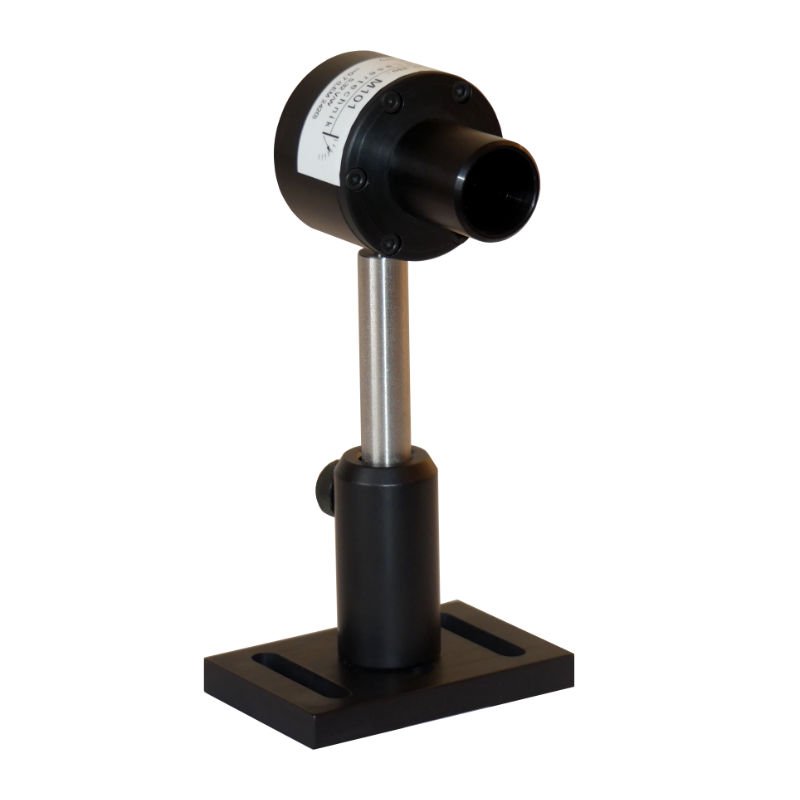

Series LP
Data
Aperture
10 mm
Sensitivity
ca. 500 mV/W
Time constant
< 2 sec.
max. average power
3 W
Detection threshold
50 µW
max. power density
20 W/cm²
Connector
E-Connector with EEPROM
Dimensions
Diameter 60 mm
Length without lens tube 20 mm
Length without lens tube 20 mm
