Evaluation electronics with USB output for pyroelectric measuring heads

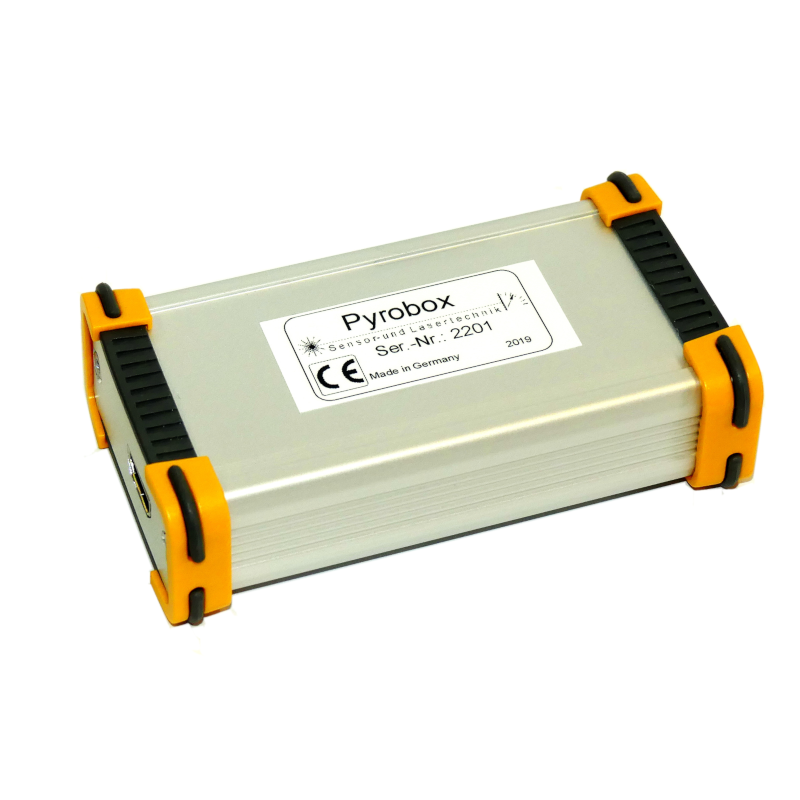

Pyrobox
Pyrobox
Evaluation electronics with USB output for pyroelectric measuring heads
This interface allows a direct connection between the measuring head and the PC. The device is
characterised by extremely simple programming. Drivers for the most important operating systems are
available.
This interface allows a direct connection between the measuring head and the PC. The device is
characterised by extremely simple programming. Drivers for the most important operating systems are
available.
- For all pyroelectric - sensors of series PEM
- 8 ranges
- high resolution ADC
- USB 2.0 port
- USB powered
- communication in ASCII
Data
Input
E-Connector
Output
USB 2.0
Number of ranges
8
max. repetition rate
2 kHz
Dimension
110 mm x 62 mm x 30 mm

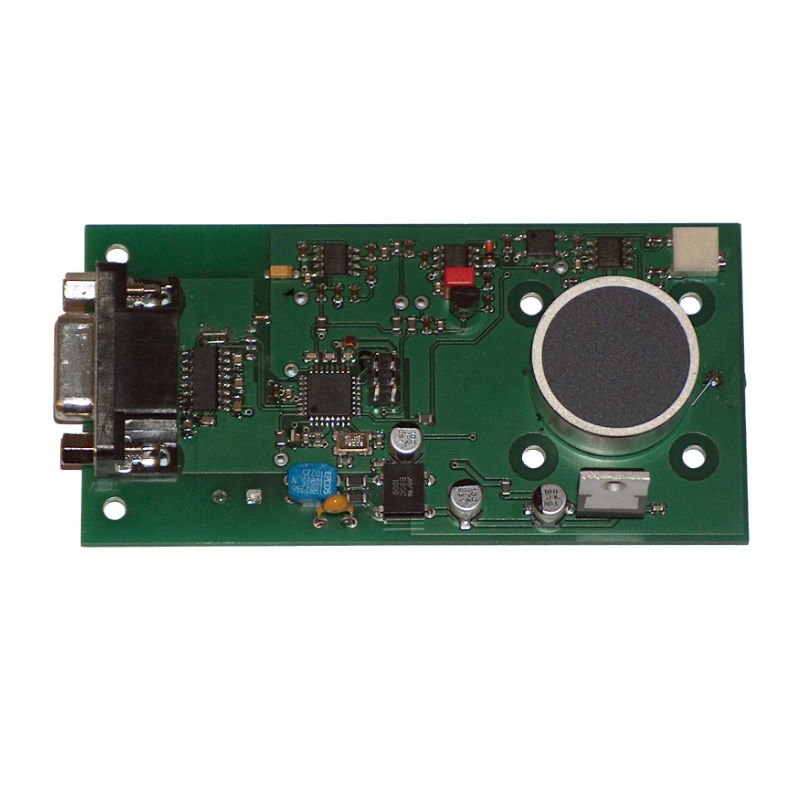

Data
Input
BNC
number of ranges
2
Trigger input
TTL
Output
USB 2.0 or RS232
max. repetition rate
100 Hz
Dimension
90 mm x 62 mm x 30 mm
