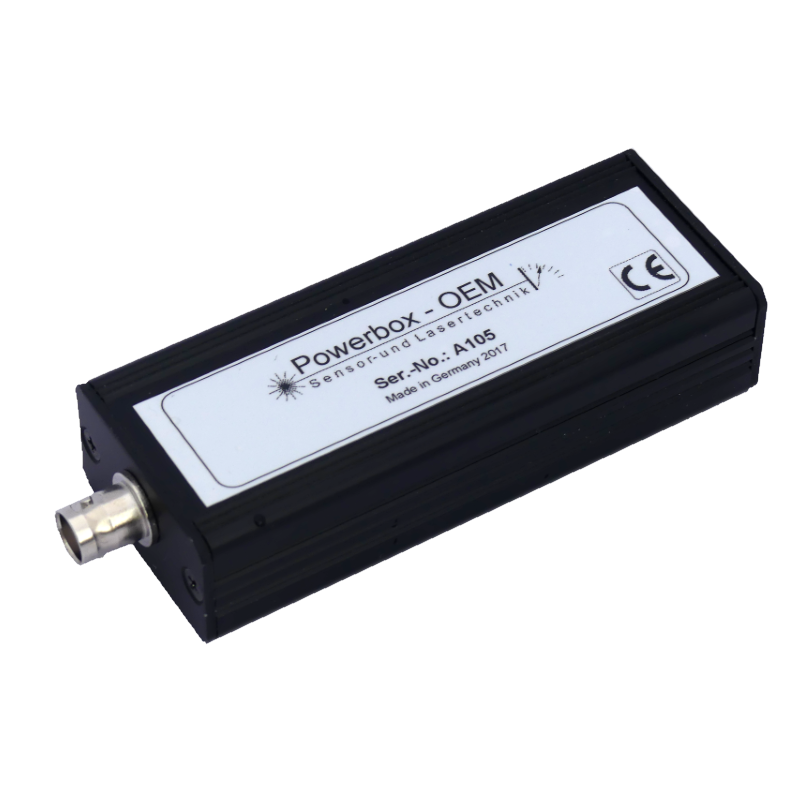

This Powerbox process the signals of all thermopile power measuring heads. The output signal will be transferred via USB to a connected PC. The device gets his power supply via USB Port. The Powerbox communicates with the PC by using ASCII code so it will be easy to integrate it into an existing software program or system.
OEM Powerbox
Data
Input
BNC
Output
USB 2.0
or RS232
or RS232
Amount of working range
4
Power supply
via USB
at RS232 5 VDC
at RS232 5 VDC
Dimensions
100 mm x 41 mm x 24 mm
